StormByte::Buffer::IO::ReadTelemetry Class Reference

Reader counters on top of StormByte::Buffer::ReadTelemetry. More...

#include <StormByte/buffer/io/telemetry.hxx>

Inheritance diagram for StormByte::Buffer::IO::ReadTelemetry:

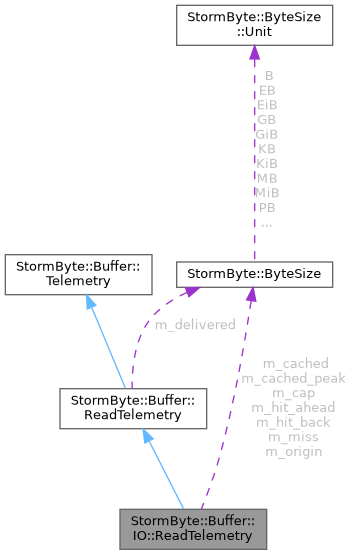

Collaboration diagram for StormByte::Buffer::IO::ReadTelemetry:

Public Member Functions
	ReadTelemetry () noexcept
	Construct all counters at 0.
	ReadTelemetry (const ReadTelemetry &)=delete
	Copy constructor is deleted.
	ReadTelemetry (ReadTelemetry &&)=delete
	Move constructor is deleted.
virtual	~ReadTelemetry () noexcept override
	Virtual destructor.
ReadTelemetry &	operator= (const ReadTelemetry &)=delete
	Copy assignment is deleted.
ReadTelemetry &	operator= (ReadTelemetry &&)=delete
	Move assignment is deleted.
StormByte::ByteSize	HitAhead () const noexcept
	Of Delivered, cache octets never consumed before.
StormByte::ByteSize	HitBack () const noexcept
	Of Delivered, cache octets already passed by Tell.
StormByte::ByteSize	Miss () const noexcept
	Of Delivered, octets pulled from the origin in that Read.
StormByte::ByteSize	Origin () const noexcept
	Octets transferred by OriginPull this session.
StormByte::ByteSize	Cached () const noexcept
	Resident cache octets now.
StormByte::ByteSize	CachedPeak () const noexcept
	Maximum Cached since construction.
StormByte::ByteSize	Cap () const noexcept
	MaxMemory at this snapshot.
std::size_t	SeekLogical () const noexcept
	Successful public Seek calls.
std::size_t	SeekOrigin () const noexcept
	OriginSeek calls that reached the device.
std::size_t	SeekSavedFull () const noexcept
	Closed Seek epochs that never called OriginSeek after a cache hit.
std::size_t	SeekSavedPartial () const noexcept
	Closed Seek epochs that called OriginSeek after a cache hit.
std::size_t	TryAgain () const noexcept
	Times Read / Peek returned TryAgain.
std::size_t	Saturated () const noexcept
	Times resident cache reached Cap while Cap > 0.
std::size_t	Evicted () const noexcept
	Cache spans dropped by MaxMemory eviction.
std::chrono::nanoseconds	WaitMin () const noexcept
	Shortest sampled Read/Peek wait.
std::chrono::nanoseconds	WaitMax () const noexcept
	Longest sampled Read/Peek wait.
std::chrono::nanoseconds	WaitTotal () const noexcept
	Sum of sampled waits.
std::size_t	WaitSamples () const noexcept
	Sampled waits (work or timed-out TryAgain).
	operator StormByte::String::String () const override
	Flatten base and IO read counters.
Public Member Functions inherited from StormByte::Buffer::ReadTelemetry
	ReadTelemetry () noexcept
	Construct all counters at 0.
	ReadTelemetry (const ReadTelemetry &)=delete
	ReadTelemetry (ReadTelemetry &&)=delete
ReadTelemetry &	operator= (const ReadTelemetry &)=delete
ReadTelemetry &	operator= (ReadTelemetry &&)=delete
StormByte::ByteSize	Delivered () const noexcept
	Octets delivered to the caller.
	operator StormByte::String::String () const override
	Flatten base read counters.
Public Member Functions inherited from StormByte::Buffer::Telemetry
virtual	~Telemetry () noexcept
	Virtual destructor.
StormByte::ByteSize	MeanRate () const noexcept
	Effective mean rate of requested user operations.
STORMBYTE_FORCE_INLINE	operator std::string () const
	Flatten via StormByte::String::String in this TU.

Protected Attributes
StormByte::ByteSize	m_hit_ahead
	First-touch cache octets.
StormByte::ByteSize	m_hit_back
	Replay after Seek.
StormByte::ByteSize	m_miss
	Pulled from the origin this Read.
StormByte::ByteSize	m_origin
	OriginPull octets this session.
StormByte::ByteSize	m_cached
	Resident cache now.
StormByte::ByteSize	m_cached_peak
	Maximum Cached.
StormByte::ByteSize	m_cap
	MaxMemory snapshot.
std::size_t	m_seek_logical
	Public Seek calls.
std::size_t	m_seek_origin
	OriginSeek calls.
std::size_t	m_seek_saved_full
	Epochs with no OriginSeek after a hit.
std::size_t	m_seek_saved_partial
	Epochs that later needed OriginSeek.
std::size_t	m_try_again
	Read/Peek TryAgain.
std::size_t	m_saturated
	Cache hit Cap.
std::size_t	m_evicted
	Spans dropped by MaxMemory.
std::chrono::nanoseconds	m_wait_min
	Shortest sampled wait.
std::chrono::nanoseconds	m_wait_max
	Longest sampled wait.
std::chrono::nanoseconds	m_wait_total
	Sum of sampled waits.
std::size_t	m_wait_samples
	Sampled waits.
Protected Attributes inherited from StormByte::Buffer::ReadTelemetry
StormByte::ByteSize	m_delivered
	Octets delivered.

Friends
class	StormByte::Buffer::Backend::IO::BufferedReader

Additional Inherited Members
Protected Member Functions inherited from StormByte::Buffer::Telemetry
	Telemetry () noexcept
	Construct all counters at 0.
	Telemetry (const Telemetry &)=delete
	Telemetry (Telemetry &&)=delete
Telemetry &	operator= (const Telemetry &)=delete
Telemetry &	operator= (Telemetry &&)=delete
void	DeltaOperation (StormByte::ByteSize bytes, std::chrono::microseconds elapsed) noexcept
	Accumulate one requested operation and refresh MeanRate.

Detailed Description

Reader counters on top of StormByte::Buffer::ReadTelemetry.

Same fields as BufferedReader::Telemetry in SHA c1d44cb. StormByte::Buffer::Backend::IO::BufferedReader writes them. MeanRate is the caller rate, not the origin rate.

Constructor & Destructor Documentation

ReadTelemetry() [1/3]

StormByte::Buffer::IO::ReadTelemetry::ReadTelemetry ( )

noexcept

Construct all counters at 0.

ReadTelemetry() [2/3]

StormByte::Buffer::IO::ReadTelemetry::ReadTelemetry ( const ReadTelemetry &  )

delete

Copy constructor is deleted.

ReadTelemetry() [3/3]

StormByte::Buffer::IO::ReadTelemetry::ReadTelemetry ( ReadTelemetry &&  )

delete

Move constructor is deleted.

~ReadTelemetry()

virtual StormByte::Buffer::IO::ReadTelemetry::~ReadTelemetry ( )

overridevirtualnoexcept

Virtual destructor.

Out-of-line for the DLL boundary.

Reimplemented from StormByte::Buffer::ReadTelemetry.

Member Function Documentation

Cached()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::Cached ( ) const

noexcept

Resident cache octets now.

Returns

Current map occupancy.

CachedPeak()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::CachedPeak ( ) const

noexcept

Maximum Cached since construction.

Returns

Peak occupancy.

Cap()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::Cap ( ) const

noexcept

MaxMemory at this snapshot.

Returns

Cache cap. 0 means no cache.

Evicted()

std::size_t StormByte::Buffer::IO::ReadTelemetry::Evicted ( ) const

noexcept

Cache spans dropped by MaxMemory eviction.

Returns

Count.

HitAhead()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::HitAhead ( ) const

noexcept

Of Delivered, cache octets never consumed before.

Returns

First-touch / read-ahead hits.

HitBack()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::HitBack ( ) const

noexcept

Of Delivered, cache octets already passed by Tell.

Returns

Page-cache replay after Seek.

Miss()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::Miss ( ) const

noexcept

Of Delivered, octets pulled from the origin in that Read.

Returns

Origin miss octets.

operator StormByte::String::String()

StormByte::Buffer::IO::ReadTelemetry::operator StormByte::String::String ( ) const

overridevirtual

Flatten base and IO read counters.

Returns

IEC ByteSize text. MeanRate ends with /s.

Implements StormByte::Buffer::Telemetry.

operator=() [1/2]

ReadTelemetry & StormByte::Buffer::IO::ReadTelemetry::operator= ( const ReadTelemetry &  )

delete

Copy assignment is deleted.

Returns

*this.

operator=() [2/2]

ReadTelemetry & StormByte::Buffer::IO::ReadTelemetry::operator= ( ReadTelemetry &&  )

delete

Move assignment is deleted.

Returns

*this.

Origin()

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::Origin ( ) const

noexcept

Octets transferred by OriginPull this session.

Returns

Accumulator. Prefetch included.

Saturated()

std::size_t StormByte::Buffer::IO::ReadTelemetry::Saturated ( ) const

noexcept

Times resident cache reached Cap while Cap > 0.

Returns

Count.

SeekLogical()

std::size_t StormByte::Buffer::IO::ReadTelemetry::SeekLogical ( ) const

noexcept

Successful public Seek calls.

Returns

Count.

SeekOrigin()

std::size_t StormByte::Buffer::IO::ReadTelemetry::SeekOrigin ( ) const

noexcept

OriginSeek calls that reached the device.

Returns

Count.

SeekSavedFull()

std::size_t StormByte::Buffer::IO::ReadTelemetry::SeekSavedFull ( ) const

noexcept

Closed Seek epochs that never called OriginSeek after a cache hit.

Returns

Count.

SeekSavedPartial()

std::size_t StormByte::Buffer::IO::ReadTelemetry::SeekSavedPartial ( ) const

noexcept

Closed Seek epochs that called OriginSeek after a cache hit.

Returns

Count.

TryAgain()

std::size_t StormByte::Buffer::IO::ReadTelemetry::TryAgain ( ) const

noexcept

Times Read / Peek returned TryAgain.

Returns

Count.

WaitMax()

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::WaitMax ( ) const

noexcept

Longest sampled Read/Peek wait.

Returns

0 if WaitSamples is 0.

WaitMin()

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::WaitMin ( ) const

noexcept

Shortest sampled Read/Peek wait.

Returns

0 if WaitSamples is 0.

WaitSamples()

std::size_t StormByte::Buffer::IO::ReadTelemetry::WaitSamples ( ) const

noexcept

Sampled waits (work or timed-out TryAgain).

Returns

Count. Not empty no-ops.

WaitTotal()

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::WaitTotal ( ) const

noexcept

Sum of sampled waits.

Returns

Accumulator.

Friends And Related Symbol Documentation

StormByte::Buffer::Backend::IO::BufferedReader

friend class StormByte::Buffer::Backend::IO::BufferedReader

friend

Member Data Documentation

m_cached

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_cached

protected

Resident cache now.

m_cached_peak

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_cached_peak

protected

Maximum Cached.

m_cap

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_cap

protected

MaxMemory snapshot.

m_evicted

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_evicted

protected

Spans dropped by MaxMemory.

m_hit_ahead

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_hit_ahead

protected

First-touch cache octets.

m_hit_back

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_hit_back

protected

Replay after Seek.

m_miss

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_miss

protected

Pulled from the origin this Read.

m_origin

StormByte::ByteSize StormByte::Buffer::IO::ReadTelemetry::m_origin

protected

OriginPull octets this session.

m_saturated

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_saturated

protected

Cache hit Cap.

m_seek_logical

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_seek_logical

protected

Public Seek calls.

m_seek_origin

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_seek_origin

protected

OriginSeek calls.

m_seek_saved_full

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_seek_saved_full

protected

Epochs with no OriginSeek after a hit.

m_seek_saved_partial

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_seek_saved_partial

protected

Epochs that later needed OriginSeek.

m_try_again

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_try_again

protected

Read/Peek TryAgain.

m_wait_max

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::m_wait_max

protected

Longest sampled wait.

m_wait_min

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::m_wait_min

protected

Shortest sampled wait.

m_wait_samples

std::size_t StormByte::Buffer::IO::ReadTelemetry::m_wait_samples

protected

Sampled waits.

m_wait_total

std::chrono::nanoseconds StormByte::Buffer::IO::ReadTelemetry::m_wait_total

protected

Sum of sampled waits.

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/buffer/io/telemetry.hxx
