StormByte::Buffer::IO::WriteTelemetry Class Reference

Writer counters on top of StormByte::Buffer::WriteTelemetry. More...

#include <StormByte/buffer/io/telemetry.hxx>

Inheritance diagram for StormByte::Buffer::IO::WriteTelemetry:

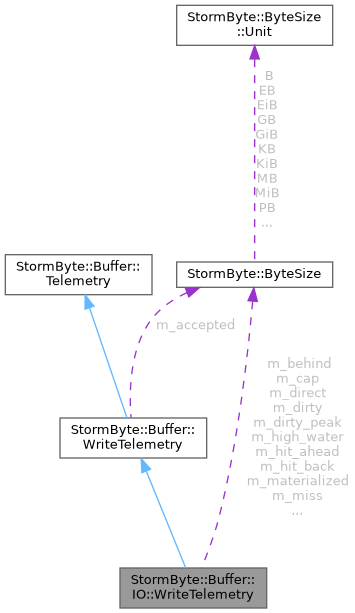

Collaboration diagram for StormByte::Buffer::IO::WriteTelemetry:

Public Member Functions
	WriteTelemetry () noexcept
	Construct all counters at 0.
	WriteTelemetry (const WriteTelemetry &)=delete
	Copy constructor is deleted.
	WriteTelemetry (WriteTelemetry &&)=delete
	Move constructor is deleted.
virtual	~WriteTelemetry () noexcept override
	Virtual destructor.
WriteTelemetry &	operator= (const WriteTelemetry &)=delete
	Copy assignment is deleted.
WriteTelemetry &	operator= (WriteTelemetry &&)=delete
	Move assignment is deleted.
StormByte::ByteSize	Behind () const noexcept
	Of Accepted, octets that did not hit the origin on the caller thread.
StormByte::ByteSize	Direct () const noexcept
	Of Accepted, octets pushed on the caller thread.
StormByte::ByteSize	Origin () const noexcept
	Octets pushed through OriginPush since construction.
StormByte::ByteSize	Materialized () const noexcept
	Durable origin length now.
StormByte::ByteSize	HighWater () const noexcept
	Maximum logical Tell since Open / Truncate.
StormByte::ByteSize	HitAhead () const noexcept
	Writes that landed in a resident page at or after the previous high-water.
StormByte::ByteSize	HitBack () const noexcept
	Writes that landed in a resident page behind the high-water.
StormByte::ByteSize	Miss () const noexcept
	Writes that created or extended a page.
StormByte::ByteSize	Dirty () const noexcept
	Octets not yet on the origin.
StormByte::ByteSize	DirtyPeak () const noexcept
	Maximum Dirty since construction.
StormByte::ByteSize	Cap () const noexcept
	Ring cap in bytes at this snapshot.
std::size_t	SeekLogical () const noexcept
	Logical Seek calls (Tell only).
std::size_t	SeekOrigin () const noexcept
	OriginSeek calls.
std::size_t	SeekSavedFull () const noexcept
	Closed epochs with no OriginSeek.
std::size_t	SeekSavedPartial () const noexcept
	Closed epochs that hit dirty pages and later needed OriginSeek.
std::size_t	TryAgain () const noexcept
	Times Write returned TryAgain.
std::size_t	Saturated () const noexcept
	Times Dirty reached Cap while Cap > 0.
std::size_t	Evicted () const noexcept
	Times GC materialised a page because Dirty exceeded MaxMemory.
std::chrono::nanoseconds	WaitMin () const noexcept
	Shortest sampled Write wait.
std::chrono::nanoseconds	WaitMax () const noexcept
	Longest sampled Write wait.
std::chrono::nanoseconds	WaitTotal () const noexcept
	Sum of sampled waits.
std::size_t	WaitSamples () const noexcept
	Sampled waits (accepted Write or timed OriginPush).
	operator StormByte::String::String () const override
	Flatten base and IO write counters.
Public Member Functions inherited from StormByte::Buffer::WriteTelemetry
	WriteTelemetry () noexcept
	Construct all counters at 0.
	WriteTelemetry (const WriteTelemetry &)=delete
	WriteTelemetry (WriteTelemetry &&)=delete
WriteTelemetry &	operator= (const WriteTelemetry &)=delete
WriteTelemetry &	operator= (WriteTelemetry &&)=delete
StormByte::ByteSize	Accepted () const noexcept
	Octets accepted by a successful write.
	operator StormByte::String::String () const override
	Flatten base write counters.
Public Member Functions inherited from StormByte::Buffer::Telemetry
virtual	~Telemetry () noexcept
	Virtual destructor.
StormByte::ByteSize	MeanRate () const noexcept
	Effective mean rate of requested user operations.
STORMBYTE_FORCE_INLINE	operator std::string () const
	Flatten via StormByte::String::String in this TU.

Protected Attributes
StormByte::ByteSize	m_behind
	Accepted not pushed on the caller thread.
StormByte::ByteSize	m_direct
	Accepted pushed on the caller thread.
StormByte::ByteSize	m_origin
	OriginPush octets.
StormByte::ByteSize	m_materialized
	Durable origin length now.
StormByte::ByteSize	m_high_water
	Max logical Tell since Open/Truncate.
StormByte::ByteSize	m_hit_ahead
	Writes into a page at/after high-water.
StormByte::ByteSize	m_hit_back
	Writes into a page behind high-water.
StormByte::ByteSize	m_miss
	Writes that created or extended a page.
StormByte::ByteSize	m_dirty
	Not yet on the origin.
StormByte::ByteSize	m_dirty_peak
	Maximum Dirty.
StormByte::ByteSize	m_cap
	Ring cap, or 0 if off.
std::size_t	m_seek_logical
	Logical Seek calls.
std::size_t	m_seek_origin
	OriginSeek calls.
std::size_t	m_seek_saved_full
	Epochs with no OriginSeek.
std::size_t	m_seek_saved_partial
	Epochs that later needed OriginSeek.
std::size_t	m_try_again
	Write TryAgain.
std::size_t	m_saturated
	Dirty reached Cap.
std::size_t	m_evicted
	GC materialised a page.
std::chrono::nanoseconds	m_wait_min
	Shortest sampled Write wait.
std::chrono::nanoseconds	m_wait_max
	Longest sampled Write wait.
std::chrono::nanoseconds	m_wait_total
	Sum of sampled waits.
std::size_t	m_wait_samples
	Sampled waits.
Protected Attributes inherited from StormByte::Buffer::WriteTelemetry
StormByte::ByteSize	m_accepted
	Octets accepted.

Friends
class	StormByte::Buffer::Backend::IO::BufferedWriter

Additional Inherited Members
Protected Member Functions inherited from StormByte::Buffer::Telemetry
	Telemetry () noexcept
	Construct all counters at 0.
	Telemetry (const Telemetry &)=delete
	Telemetry (Telemetry &&)=delete
Telemetry &	operator= (const Telemetry &)=delete
Telemetry &	operator= (Telemetry &&)=delete
void	DeltaOperation (StormByte::ByteSize bytes, std::chrono::microseconds elapsed) noexcept
	Accumulate one requested operation and refresh MeanRate.

Detailed Description

Writer counters on top of StormByte::Buffer::WriteTelemetry.

Same fields as BufferedWriter::Telemetry in SHA c1d44cb. StormByte::Buffer::Backend::IO::BufferedWriter writes them. MeanRate is the caller rate, not the origin rate.

Constructor & Destructor Documentation

WriteTelemetry() [1/3]

StormByte::Buffer::IO::WriteTelemetry::WriteTelemetry ( )

noexcept

Construct all counters at 0.

WriteTelemetry() [2/3]

StormByte::Buffer::IO::WriteTelemetry::WriteTelemetry ( const WriteTelemetry &  )

delete

Copy constructor is deleted.

WriteTelemetry() [3/3]

StormByte::Buffer::IO::WriteTelemetry::WriteTelemetry ( WriteTelemetry &&  )

delete

Move constructor is deleted.

~WriteTelemetry()

virtual StormByte::Buffer::IO::WriteTelemetry::~WriteTelemetry ( )

overridevirtualnoexcept

Virtual destructor.

Out-of-line for the DLL boundary.

Reimplemented from StormByte::Buffer::WriteTelemetry.

Member Function Documentation

Behind()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Behind ( ) const

noexcept

Of Accepted, octets that did not hit the origin on the caller thread.

Returns

Write-behind octets.

Cap()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Cap ( ) const

noexcept

Ring cap in bytes at this snapshot.

Returns

0 if the ring is off. Not MaxMemory.

Direct()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Direct ( ) const

noexcept

Of Accepted, octets pushed on the caller thread.

Returns

Direct origin octets.

Dirty()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Dirty ( ) const

noexcept

Octets not yet on the origin.

Returns

Page map plus drain pipe.

DirtyPeak()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::DirtyPeak ( ) const

noexcept

Maximum Dirty since construction.

Returns

Peak dirty occupancy.

Evicted()

std::size_t StormByte::Buffer::IO::WriteTelemetry::Evicted ( ) const

noexcept

Times GC materialised a page because Dirty exceeded MaxMemory.

Returns

Count.

HighWater()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::HighWater ( ) const

noexcept

Maximum logical Tell since Open / Truncate.

Returns

High-water of the session.

HitAhead()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::HitAhead ( ) const

noexcept

Writes that landed in a resident page at or after the previous high-water.

Returns

Hit-ahead octets.

HitBack()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::HitBack ( ) const

noexcept

Writes that landed in a resident page behind the high-water.

Returns

Hit-back octets.

Materialized()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Materialized ( ) const

noexcept

Durable origin length now.

Returns

Device occupancy. Not an accumulator.

Miss()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Miss ( ) const

noexcept

Writes that created or extended a page.

Returns

Miss octets.

operator StormByte::String::String()

StormByte::Buffer::IO::WriteTelemetry::operator StormByte::String::String ( ) const

overridevirtual

Flatten base and IO write counters.

Returns

IEC ByteSize text. MeanRate ends with /s.

Implements StormByte::Buffer::Telemetry.

operator=() [1/2]

WriteTelemetry & StormByte::Buffer::IO::WriteTelemetry::operator= ( const WriteTelemetry &  )

delete

Copy assignment is deleted.

Returns

*this.

operator=() [2/2]

WriteTelemetry & StormByte::Buffer::IO::WriteTelemetry::operator= ( WriteTelemetry &&  )

delete

Move assignment is deleted.

Returns

*this.

Origin()

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::Origin ( ) const

noexcept

Octets pushed through OriginPush since construction.

Returns

Accumulator.

Saturated()

std::size_t StormByte::Buffer::IO::WriteTelemetry::Saturated ( ) const

noexcept

Times Dirty reached Cap while Cap > 0.

Returns

Count.

SeekLogical()

std::size_t StormByte::Buffer::IO::WriteTelemetry::SeekLogical ( ) const

noexcept

Logical Seek calls (Tell only).

Returns

Count.

SeekOrigin()

std::size_t StormByte::Buffer::IO::WriteTelemetry::SeekOrigin ( ) const

noexcept

OriginSeek calls.

Returns

Count.

SeekSavedFull()

std::size_t StormByte::Buffer::IO::WriteTelemetry::SeekSavedFull ( ) const

noexcept

Closed epochs with no OriginSeek.

Returns

Count.

SeekSavedPartial()

std::size_t StormByte::Buffer::IO::WriteTelemetry::SeekSavedPartial ( ) const

noexcept

Closed epochs that hit dirty pages and later needed OriginSeek.

Returns

Count.

TryAgain()

std::size_t StormByte::Buffer::IO::WriteTelemetry::TryAgain ( ) const

noexcept

Times Write returned TryAgain.

Returns

Count.

WaitMax()

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::WaitMax ( ) const

noexcept

Longest sampled Write wait.

Returns

0 if WaitSamples is 0.

WaitMin()

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::WaitMin ( ) const

noexcept

Shortest sampled Write wait.

Returns

0 if WaitSamples is 0.

WaitSamples()

std::size_t StormByte::Buffer::IO::WriteTelemetry::WaitSamples ( ) const

noexcept

Sampled waits (accepted Write or timed OriginPush).

Returns

Count. Not instant TryAgain.

WaitTotal()

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::WaitTotal ( ) const

noexcept

Sum of sampled waits.

Returns

Accumulator.

Friends And Related Symbol Documentation

StormByte::Buffer::Backend::IO::BufferedWriter

friend class StormByte::Buffer::Backend::IO::BufferedWriter

friend

Member Data Documentation

m_behind

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_behind

protected

Accepted not pushed on the caller thread.

m_cap

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_cap

protected

Ring cap, or 0 if off.

m_direct

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_direct

protected

Accepted pushed on the caller thread.

m_dirty

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_dirty

protected

Not yet on the origin.

m_dirty_peak

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_dirty_peak

protected

Maximum Dirty.

m_evicted

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_evicted

protected

GC materialised a page.

m_high_water

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_high_water

protected

Max logical Tell since Open/Truncate.

m_hit_ahead

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_hit_ahead

protected

Writes into a page at/after high-water.

m_hit_back

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_hit_back

protected

Writes into a page behind high-water.

m_materialized

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_materialized

protected

Durable origin length now.

m_miss

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_miss

protected

Writes that created or extended a page.

m_origin

StormByte::ByteSize StormByte::Buffer::IO::WriteTelemetry::m_origin

protected

OriginPush octets.

m_saturated

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_saturated

protected

Dirty reached Cap.

m_seek_logical

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_seek_logical

protected

Logical Seek calls.

m_seek_origin

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_seek_origin

protected

OriginSeek calls.

m_seek_saved_full

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_seek_saved_full

protected

Epochs with no OriginSeek.

m_seek_saved_partial

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_seek_saved_partial

protected

Epochs that later needed OriginSeek.

m_try_again

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_try_again

protected

Write TryAgain.

m_wait_max

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::m_wait_max

protected

Longest sampled Write wait.

m_wait_min

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::m_wait_min

protected

Shortest sampled Write wait.

m_wait_samples

std::size_t StormByte::Buffer::IO::WriteTelemetry::m_wait_samples

protected

Sampled waits.

m_wait_total

std::chrono::nanoseconds StormByte::Buffer::IO::WriteTelemetry::m_wait_total

protected

Sum of sampled waits.

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/buffer/io/telemetry.hxx
